What's the difference between Scan to BIM and Revit Modelling?

Scan to BIM describes the whole pipeline, from the site scan through to a finished, coordinated model. Revit Modelling is the specific modelling deliverable on that pipeline.

What's the difference between Scan to BIM and Point Cloud Processing?

Point Cloud Processing delivers the registered, cleaned and georeferenced point cloud itself, for your own team to model from. Scan to BIM takes that further, in-house, all the way to a finished, coordinated model.

Do you offer clash detection?

Yes, as part of a Scan to BIM project we can check the model against proposed design for dimensional clashes.

What LOD is included as standard?

LOD 100 to LOD 400 depending on your requirements, including LOD 400 where the model is intended for Facilities Management — agreed at the quotation stage.

Can this be combined with a measured building survey in the same visit?

Yes — where both CAD drawings and a BIM model are needed, we can capture the data once and produce both deliverables from the same site visit.

SCAN TO BIM

East Anglia · Hertfordshire · Essex · London · South East

FROM LASER SCAN TO COORDINATED BIM MODEL

—> ONE TEAM, START TO FINISH

REQUEST A QUOTE

CALL US ON: 01279 927 033

WHAT IS SCAN TO BIM?

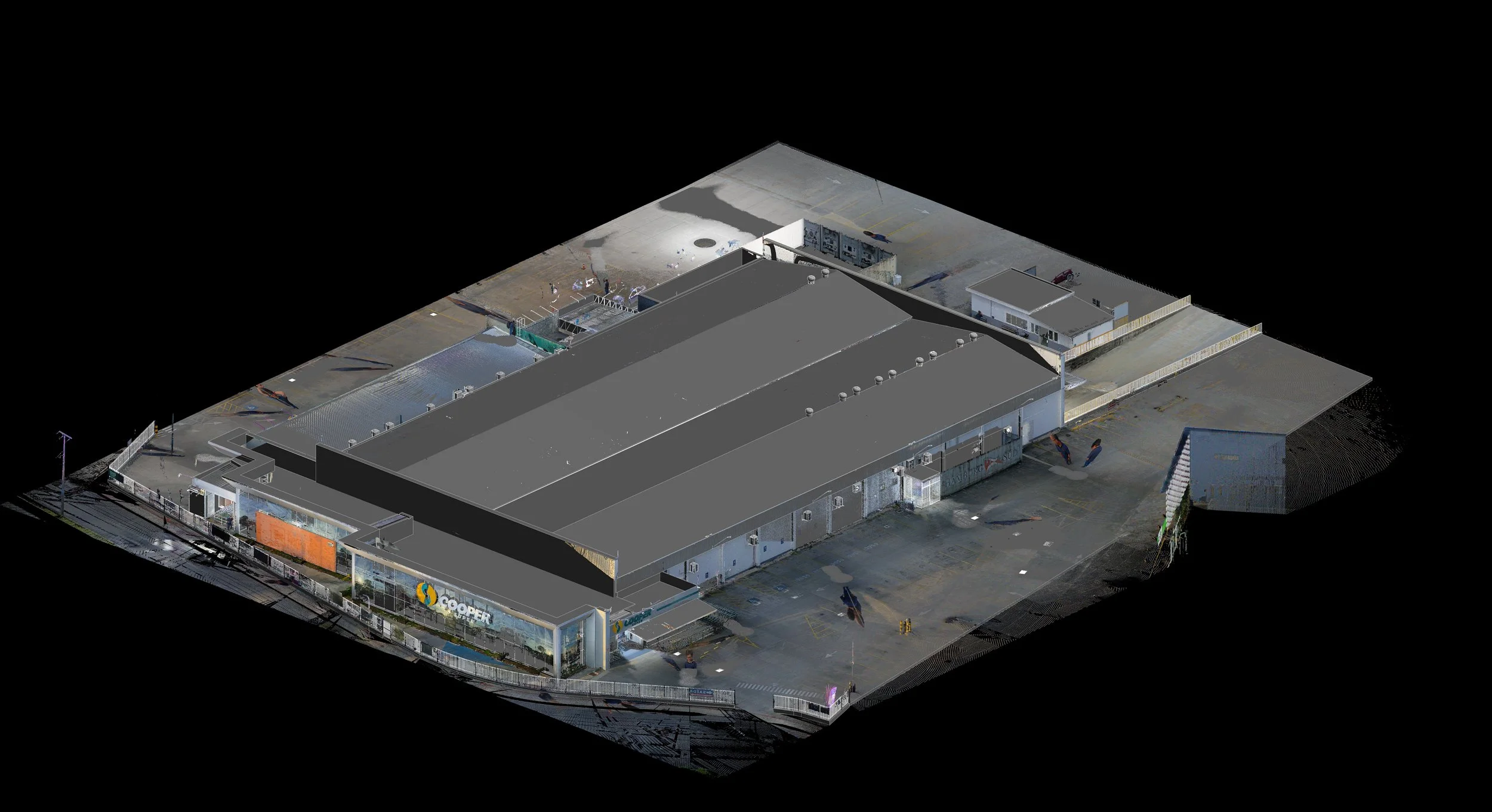

IScan to BIM is the full process of turning a laser scan into a coordinated Building Information Model — from capturing the point cloud on site through to a finished, checked model ready for design coordination.

AKN delivers the whole pipeline from a single team: scanning, point cloud processing, and model authoring in Revit or ArchiCAD — avoiding the data-quality loss that can happen when scanning and modelling are handled by separate suppliers.

Want to discuss a project? Call us on 01279 92703

WHEN IS SCAN TO BIM USED?

✅ Refurbishment, extension or fit-out projects needing a full existing-condition BIM model, not just CAD drawings

✅ Projects requiring clash detection between existing structure and proposed design

✅ Facilities management handover models, including AIR/COBie asset data where required

✅ Any project where the brief specifies "scan to BIM" without yet specifying software or Level of Development

Want to discuss a project? Call us on 01279 927033

DELIVERABLES FROM SCAN TO BIM

📍 Coordinated Architecture and Structural BIM model, LOD 100 to LOD 400 (MEP modelling is currently outside our scope)

📍 Point cloud supplied alongside the model, federated for reference

📍 2D plans, sections and elevations extracted from the model

📍Asset information linked to the model, including AIR and COBie data where client standards/templates are supplied

📍Clash detection report where required

Find out more about how we work… Call us on 01279 927033

HOW SCAN TO BIM WORKS

Site scanned using the Trimble X9
Point cloud registered, cleaned and georeferenced
Model authored in Revit or ArchiCAD to the agreed LOD
Asset information (AIR/COBie) incorporated where required
Clash detection and coordination check, then handover

TRUSTED BY

WHY CHOOSE AKN ENGINEERING FOR SCAN TO BIM?

✔️ One provider from capture to finished model — no handoff between a scanning company and a separate modelling company

- ✔️ Can combine with a measured building survey site visit, avoiding a second mobilisation

✔️ Works in Revit and ArchiCAD, matched to your project's platform

✔️ Constructionline Gold, SSIP and Achilles accredited

FAQs

Scan to BIM describes the whole pipeline, from the site scan through to a finished, coordinated model. Revit Modelling is the specific modelling deliverable on that pipeline.
Point Cloud Processing delivers the registered, cleaned and georeferenced point cloud itself, for your own team to model from. Scan to BIM takes that further, in-house, all the way to a finished, coordinated model.
Yes, as part of a Scan to BIM project we can check the model against proposed design for dimensional clashes.
LOD 100 to LOD 400 depending on your requirements, including LOD 400 where the model is intended for Facilities Management — agreed at the quotation stage.
Yes — where both CAD drawings and a BIM model are needed, we can capture the data once and produce both deliverables from the same site visit.

LOCATIONS WE COVER

HERTFORDSHIRE

BEDFORDSHIRE

CAMBRIDGESHIRE

NORTHAMPTONSHIRE

LONDON

ESSEX

KENT

OXFORDSHIRE

BERKSHIRE

NORFOLK

SUFFOLK

LINCOLNSHIRE

RUTLAND

AKN Engineering is based in Bishop's Stortford, CM23, and covers the following regions as standard. Projects outside these areas considered — please call to discuss.
