Common Setting Out Mistakes on UK Construction Sites — and How to Avoid Them
The most common setting-out mistakes on UK construction sites are: working from unverified control, failing to maintain a setting-out register, not re-checking marks after ground disturbance, misinterpreting drawing datums and coordinate systems, and setting out outside the agreed package without updated detection or design. Each is avoidable. Each has a disproportionate cost when it isn't caught early.

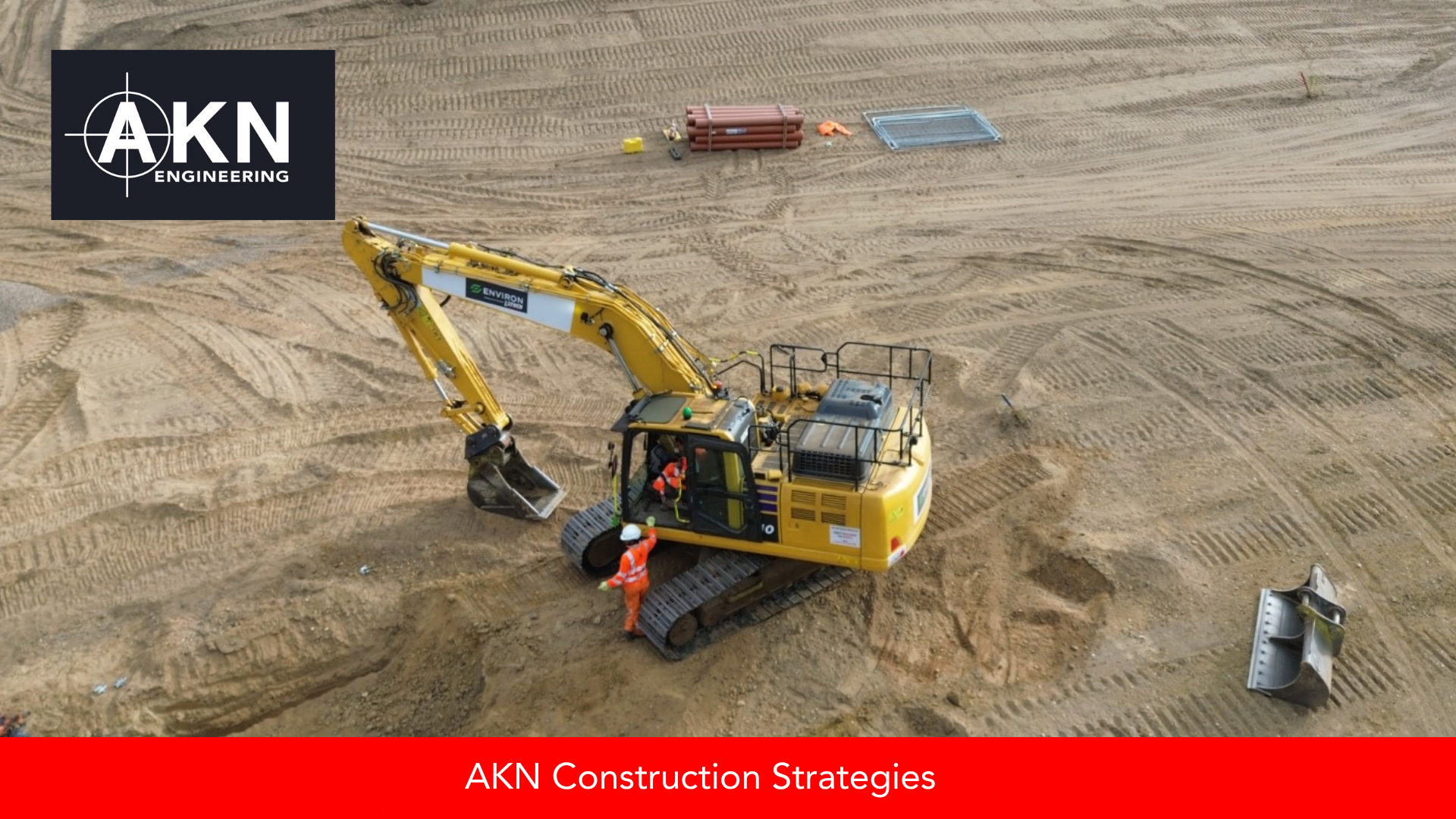

Early groundworks phase on a UK construction site — the stage at which setting out errors are most commonly made, and where verified control and accurate documentation matter most.
Why Setting Out Errors Are Almost Always Found Too Late
Setting out is one of those activities that happens early in a construction sequence and gets checked late. The pile is driven, the foundation is poured, the frame goes up — and then someone notices something isn't right.
The earlier a setting-out error is made in the sequence, the later it tends to be caught, and the more expensive it is to resolve. That's the fundamental problem — and it's why getting the basics right at the start of each package matters so much.
Mistake 1:
Working From Unverified Control
The most common root cause of setting out errors we encounter isn't a calculation mistake or a wrong coordinate. It's setting out carried out from a control point that hasn't been independently verified.
The control mark exists, looks right, and has been used before. Nobody has checked whether it has been disturbed by plant, ground movement, or works in the area. Everything derived from it carries the same error.
Fix: Verify primary control independently before any setting-out phase begins. Document the check. If you can't verify it, re-establish it.
Mistake 2:
No Setting Out Register
A setting out register is a record of every point set on site — what it is, where it is, what control it was derived from, who set it, and when. Without one, there's no audit trail.
When a question arises about a pile position six weeks after installation — and it does — the absence of a register means the only evidence is memory. Memory is not a reliable basis for a variation discussion.
Fix: Maintain a register from day one. It takes minutes per entry and creates a defensible record of every setting-out decision made on the project.
Mistake 3:
Not Re-Checking After Ground Disturbance
Control marks get disturbed. Plant clips them, ground settlement moves them, excavations undermine them. On a live site with multiple packages running simultaneously, a control mark that was accurate last week may not be accurate this week.
The error this introduces is often small — a few millimetres at the control point. Propagated across a long setting-out run or a deep structural element, it isn't small at all.
Fix: re-verify control after any significant ground disturbance, excavation, or long programme gap. Build it into the package sequence, not as an afterthought.
Mistake 4:
Misreading Drawing Datums and Coordinate Systems
UK construction drawings can reference different coordinate systems — Ordnance Survey National Grid, site grid, or project-specific grid. They can reference different vertical datums. Drawings from different disciplines sometimes use different origins.
Mixing these up — particularly when setting out from design drawings that haven't been sense-checked against the control network — produces errors that are systematic, consistent, and often not immediately obvious.
Fix: Confirm the coordinate system and datum before setting out begins. Check that the design drawing coordinates tie-in with the control network. If they don't — resolve it before any works start.
Mistake 5:
Working Outside Agreed Areas Without Updated Information
On utilities and infrastructure projects particularly, packages sometimes creep outside the area covered by the original setting out or utility detection. New piling locations are added, drainage runs are extended, excavation limits change.
Setting out in areas that haven't been covered by the current detection or design increases both technical and safety risk. The original survey doesn't cover it. The control may not extend to it.
Fix: when scope changes, trigger a review of what survey information covers the new area. Don't assume the existing data extends.
What This Means in Practice
Most setting-out errors are not the result of incompetence. They're the result of process gaps — checks that should happen but don't, records that should be kept but aren't, assumptions that seem reasonable but haven't been verified.
The projects that avoid them are the ones that treat setting out as a controlled activity with a defined process, not just a task to be completed as quickly as possible before the next package starts.
